Powerful, safe, and reliable

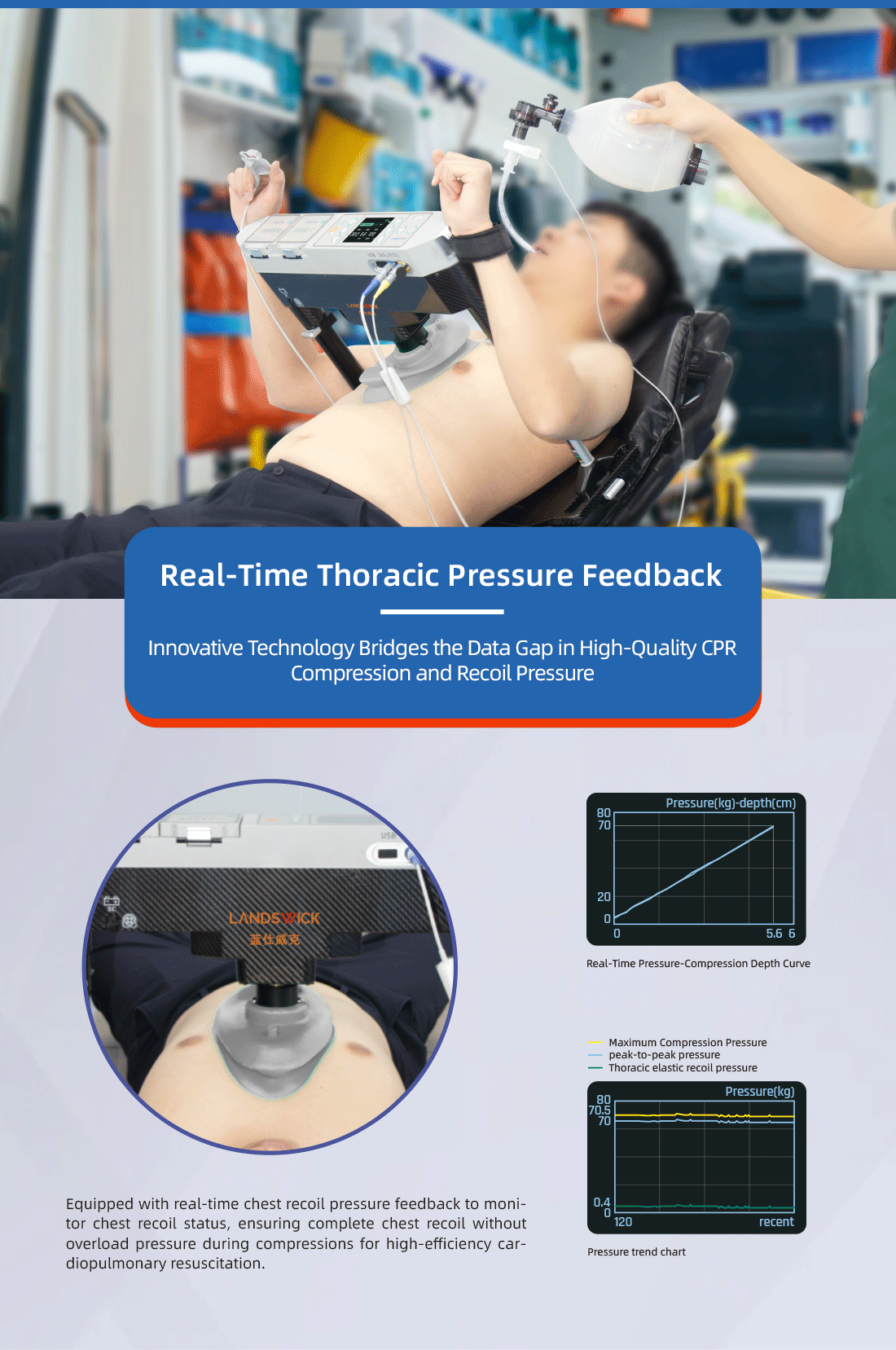

＋ Advanced technology:The innovative patented compression pressure monitoring system and fracture warning technology are used to monitor the patient's maximum compression pressure in real time, indicating changes in sternal strength, which can effectively reduce the probability of sternal fractures in patients;
＋ Advanced technology:equipped with compression depth limit monitoring sensor and limit structure design, achieving double insurance to ensure patient safety;
＋ Worry-free power consumption:
Electric control, can be powered by vehicle and mains, completely getting rid of the problem of gas source guarantee
Dual battery power supply system, can replace the backup battery without stopping, can support more than 130 minutes of battery working time (load greater than 80kg, continuous pressing, pressing depth 5.6cm, pressing frequency 120 times/minute)
Single battery power supply system can support 265 minutes of battery working time (load greater than 80kg, continuous pressing, pressing depth 5.6cm, pressing frequency 120 times/minute)
With a separate battery offline power check function
With battery life reminder function
With low battery power reminder function
Battery, airport transportation safety certification, can be used for aviation, ship safety sea transportation
＋ Compact and lightweight:
High-end carbon fibre material, high strength, high temperature resistance and high stability.
The weight of the whole machine is ≤7.0kg, portable, easy to carry with one hand.
＋ Working conditions:
face extreme environments such as severe cold, scorching heat, heavy rain, and plateaus with ease;
Exceeding stringent testing standards, meeting aviation, ship safety shipping, and ambulance transfer;
Passed airport transportation safety certification, in compliance with IEC62133-2:2017 and UN38.3 certification standards;
Passed EN1789 verification, applicable to medical vehicles and their equipment-road ambulance standards;
＋ Height can be increased:Suitable for overweight patients(≧300kg, sternum height range 18.3cm-35.3cm)
Main parameters and configuration
| Press drive mode | electric electric control |
| Compression frequency | 100~120 times/minute continuously adjustable |
| Press release ratio | 1:1 (50%:50%) |
| Pressing depth | Continuously adjustable within 0-56mm range |
| Compression mode | 15:2, 30:2, continuous compression, CCV mode |
| Suitable for chest patients | The range of chest thickness is 13.3cm-30.3cm, and the width can reach 47cm; the height increasing accessory can increase the range of chest height, ranging from 18.3-35.3 cm |
| Power supply type | support AC and DC power supply |
| Storage | 16GB， Can store at least 10000 event data |

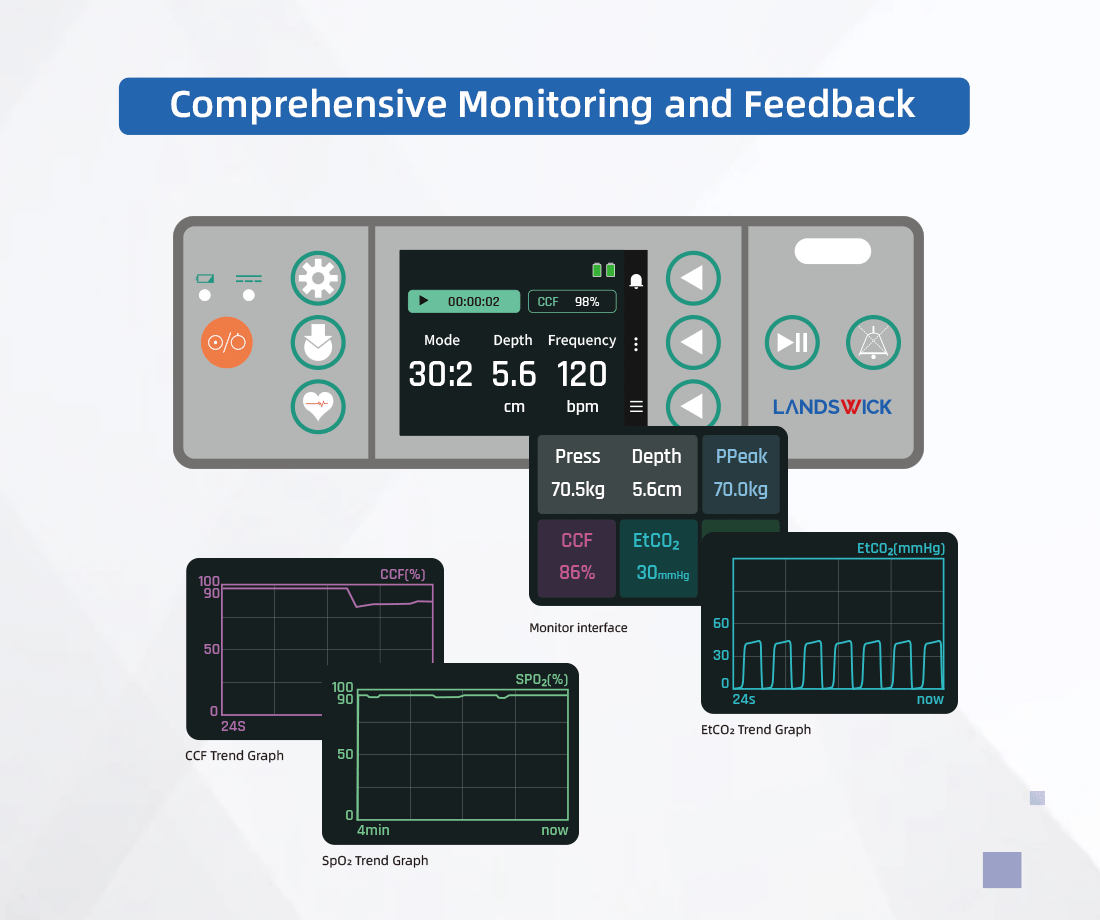

| display | 3.5-inch data display screen |

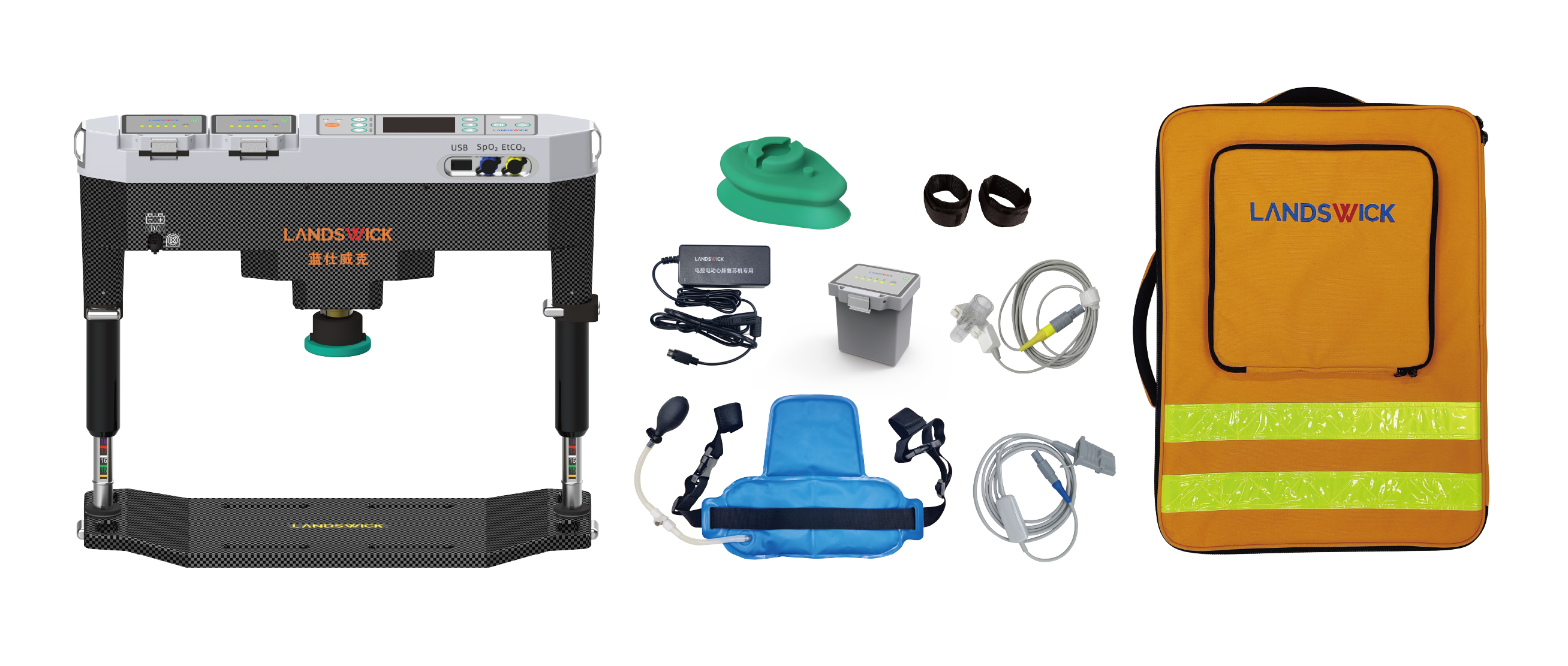

| Configuration | 1 set of host, 1 back panel (including airway opening pad), 2 rechargeable lithium batteries, 1 set of power adapter, 1 set of end tidal carbon dioxide detection module, 1 set of blood oxygen saturation detection module, 1 portable backpack, 1 negative pressure suction cup, and 1 battery holder charger (optional) |
Reminder: Please refer to the latest filing information.
