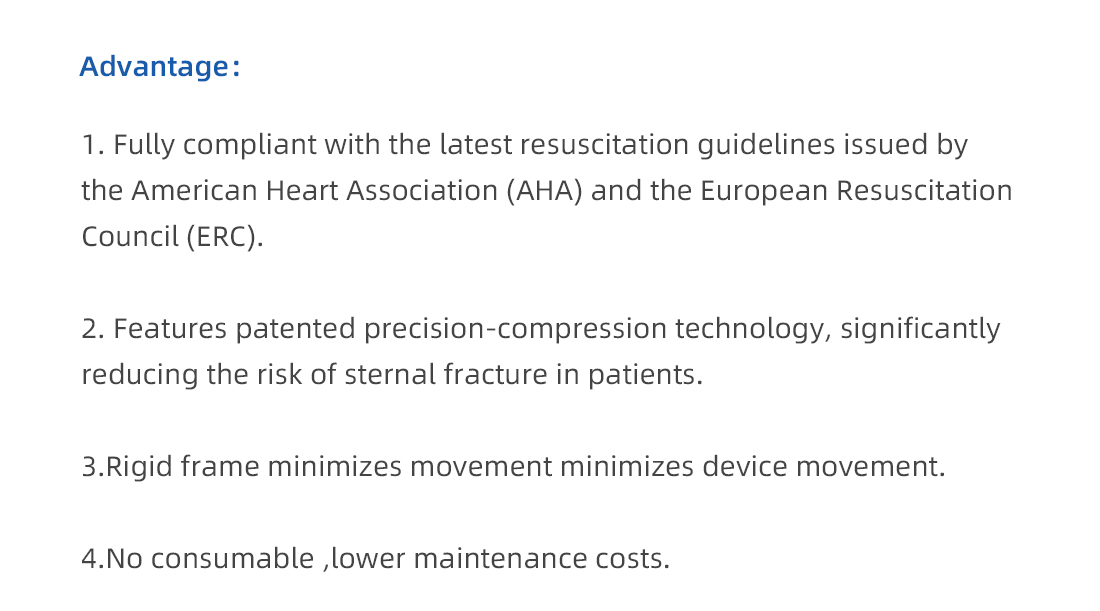

Advantage
1. Fully compliant with the latest resuscitation guidelines issued by the American Heart Association (AHA) and the European Resuscitation Council (ERC).
2. Features patented precision-compression technology, significantly reducing the risk of sternal fracture in patients.
3.Rigid frame minimizes movement minimizes device movement.
4.No consumable ,lower maintenance costs.
Product performance

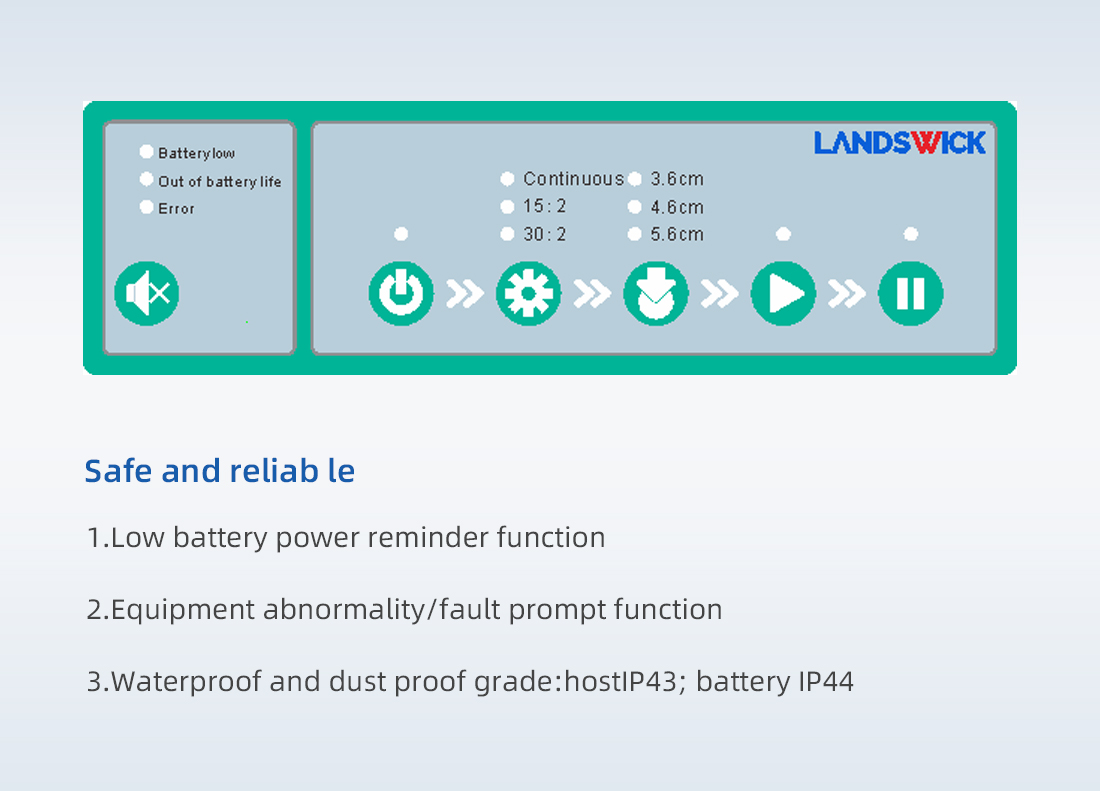

① Safe and reliable1.Low battery power reminder function
2.Equipment abnormality/fault prompt function
3.Waterproof and dust proof grade:hostIP43; battery IP44
② Functional and practical

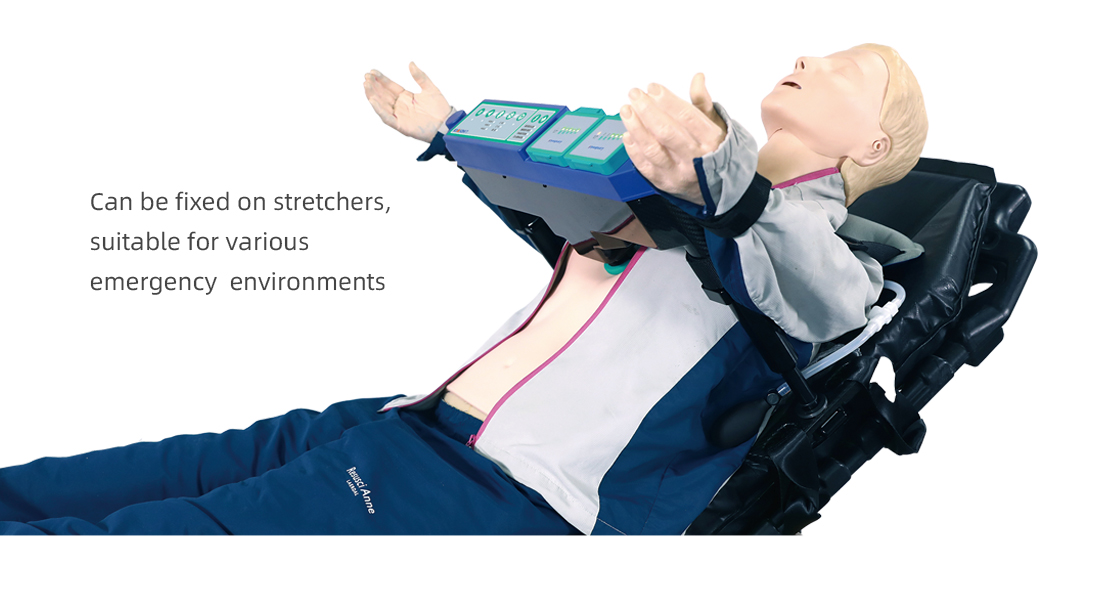

1.Can be fixed on stretchers, suitable for various emergency environments.

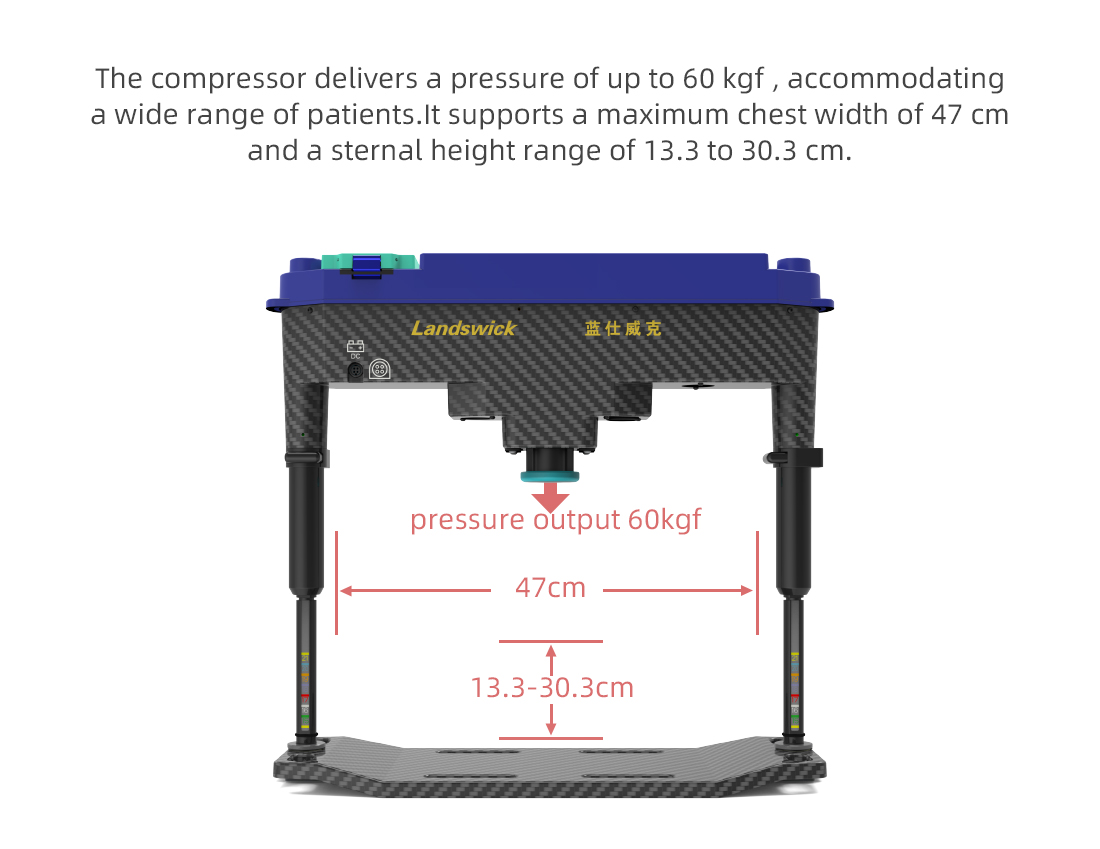

2. The compressor delivers a pressure of up to 60 kgf , accommodating a wide range of patients.
3.It supports a maximum chest width of 47 cm and a sternal height range of 13.3 to 30.3 cm.

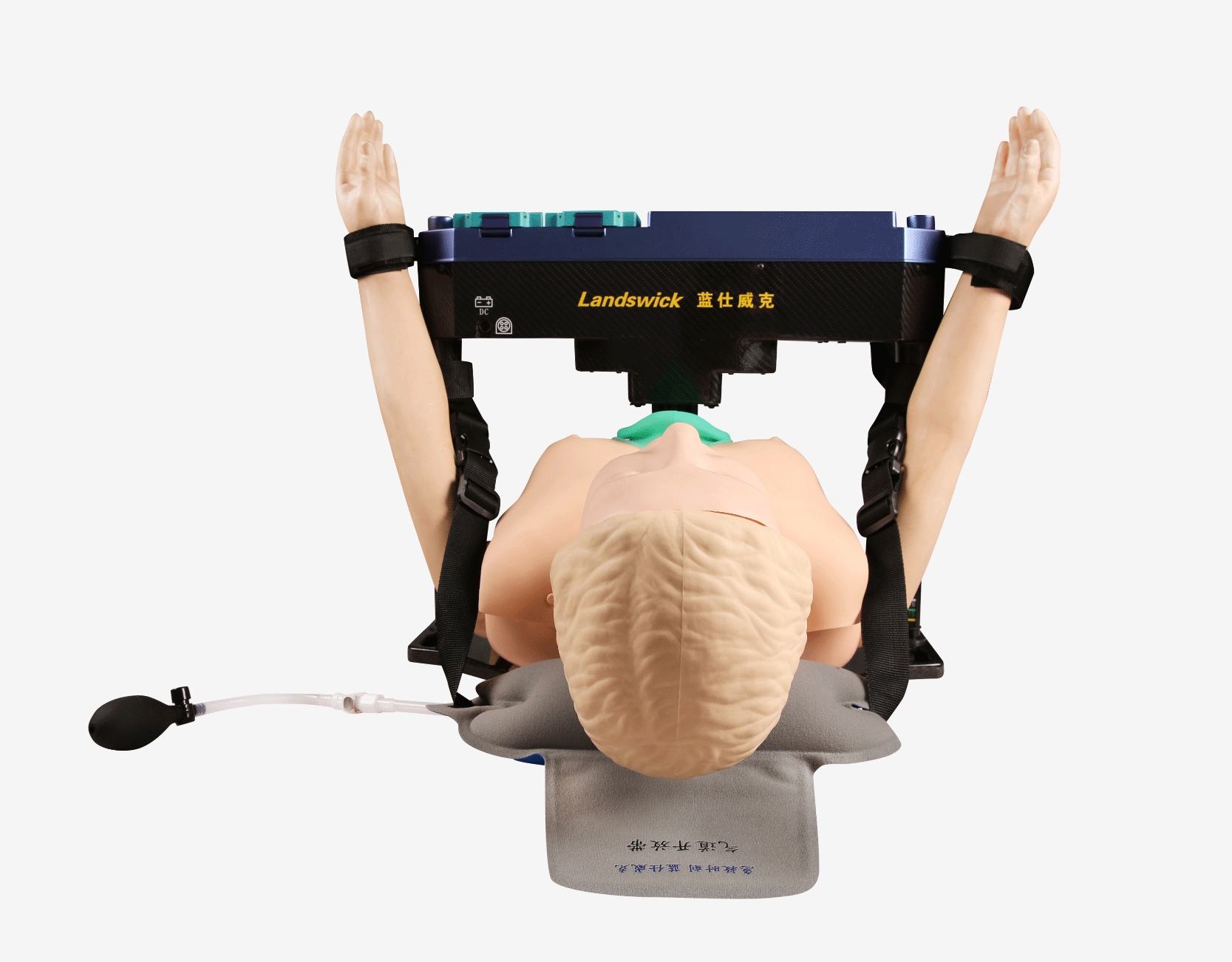

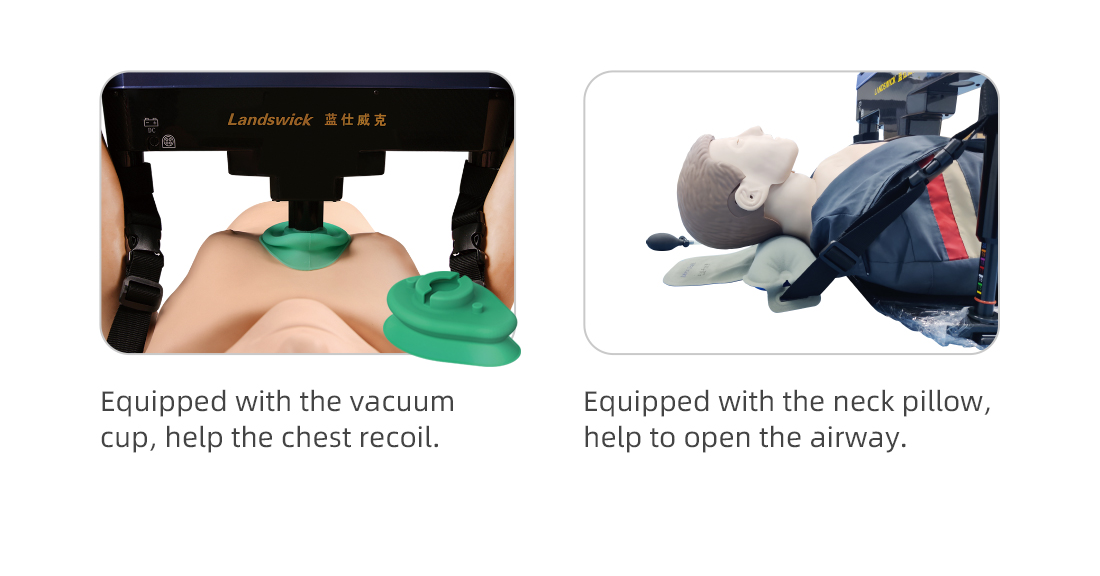

4.Equipped with the neck pillow, help to open the airway.
5. Equipped with the vacuum cup, help the chest recoil.

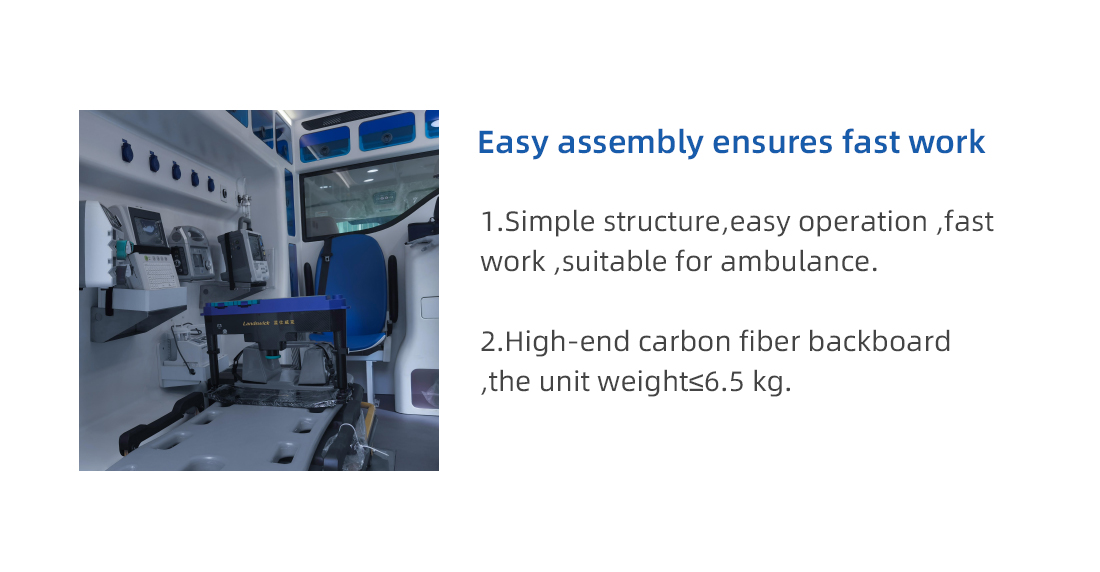

③ Easy assembly ensures fast work
1.Simple structure,easy operation ,fast work ,suitable for ambulance.
2.High-end carbon fiber backboard ,the unit weight≤6.5 kg.
Product main technical parameters and configuration
Compression rate | ＞100times/min |
Compression depth | 0-6cm range, 3.6cm/4.6cm/5.6cm |
Compression mode | 15:2/30:2/Continuous compression |
Power | Support AC and DC power supplies |
Rechargeable Lithium battery | Single battery work time≥60min, charge duration＜70min |

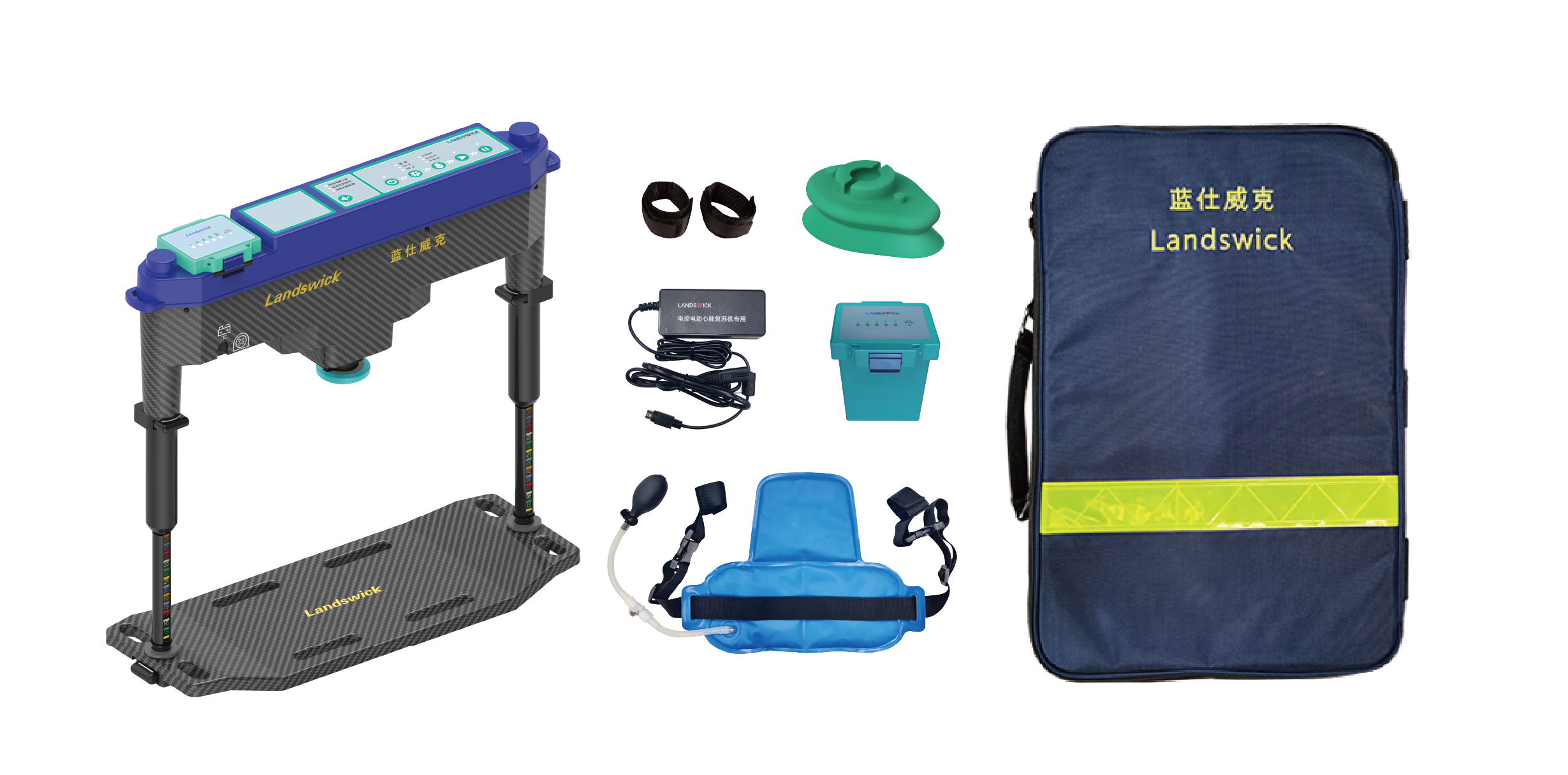

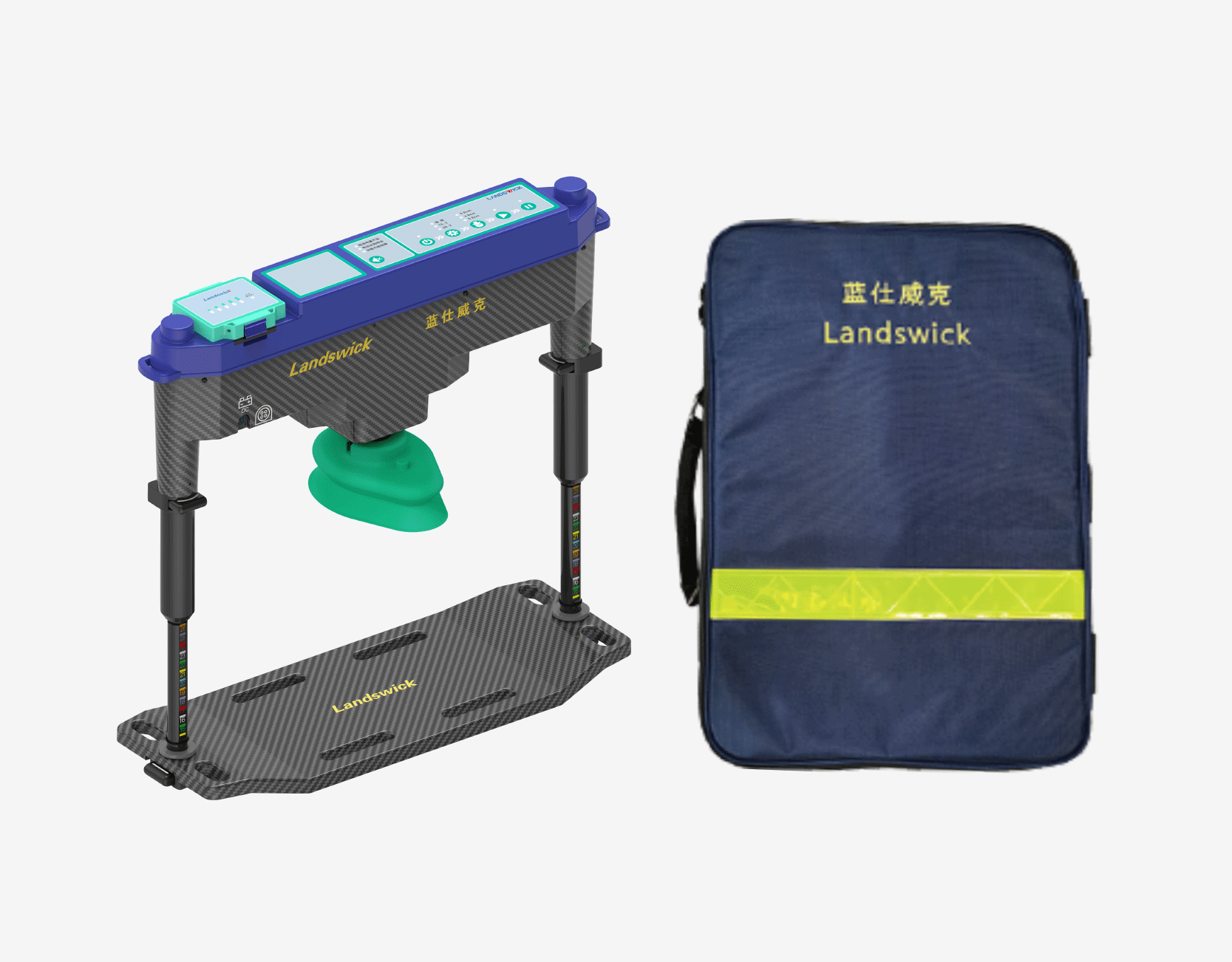

Compact and Accessories | 1 main unit, 1 backboard (including airway opening pad), 1 rechargeable lithium battery, 1 power adapter, 1 portable backpack, 1 negative pressure suction cup, 1 battery charger (optional) |
