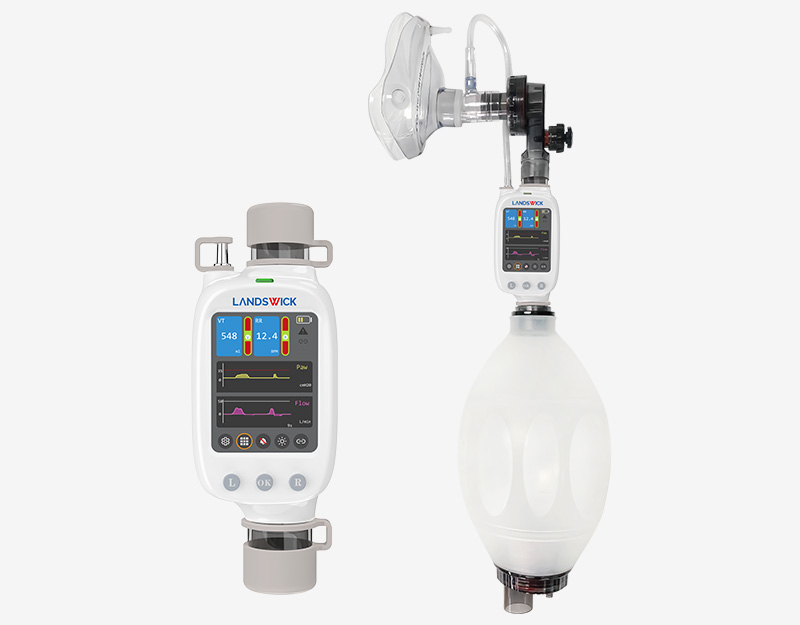

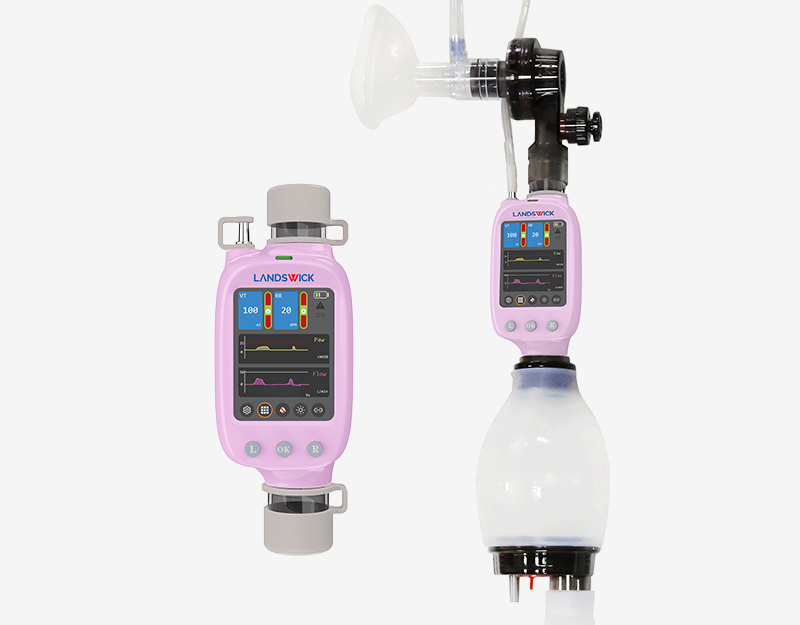

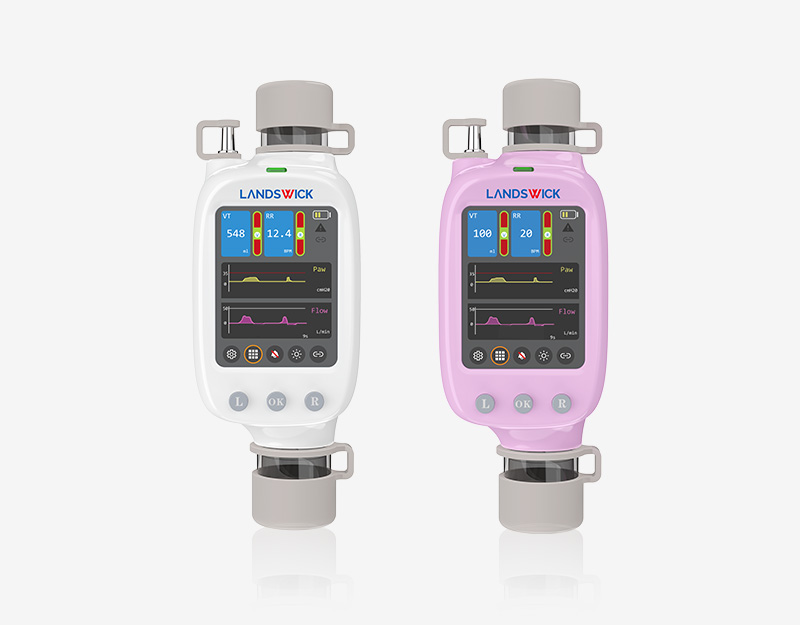

Resuscitaors with ventilation parameters monitoring function

QR code
share
WeChat
Model nano100
Type respirator
Brand Landswick
Detail


Product features and advantages

· National invention patent technology.

· VT, RR, MV and Flow can be configured according to patient status.

· The parameters can be configured to the 《AHA American Heart Association Resuscitation》guidelines and various clinical needs.

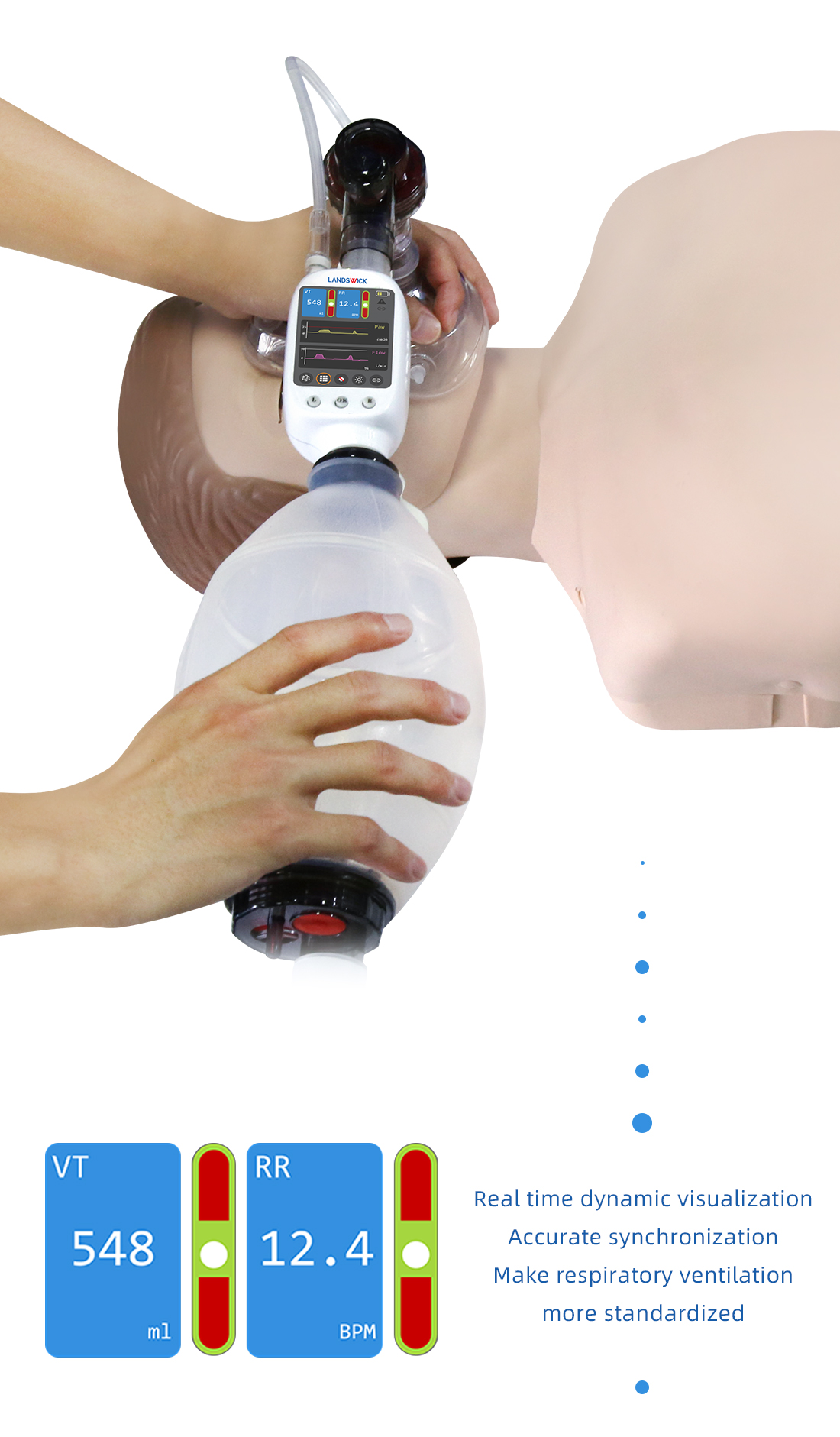

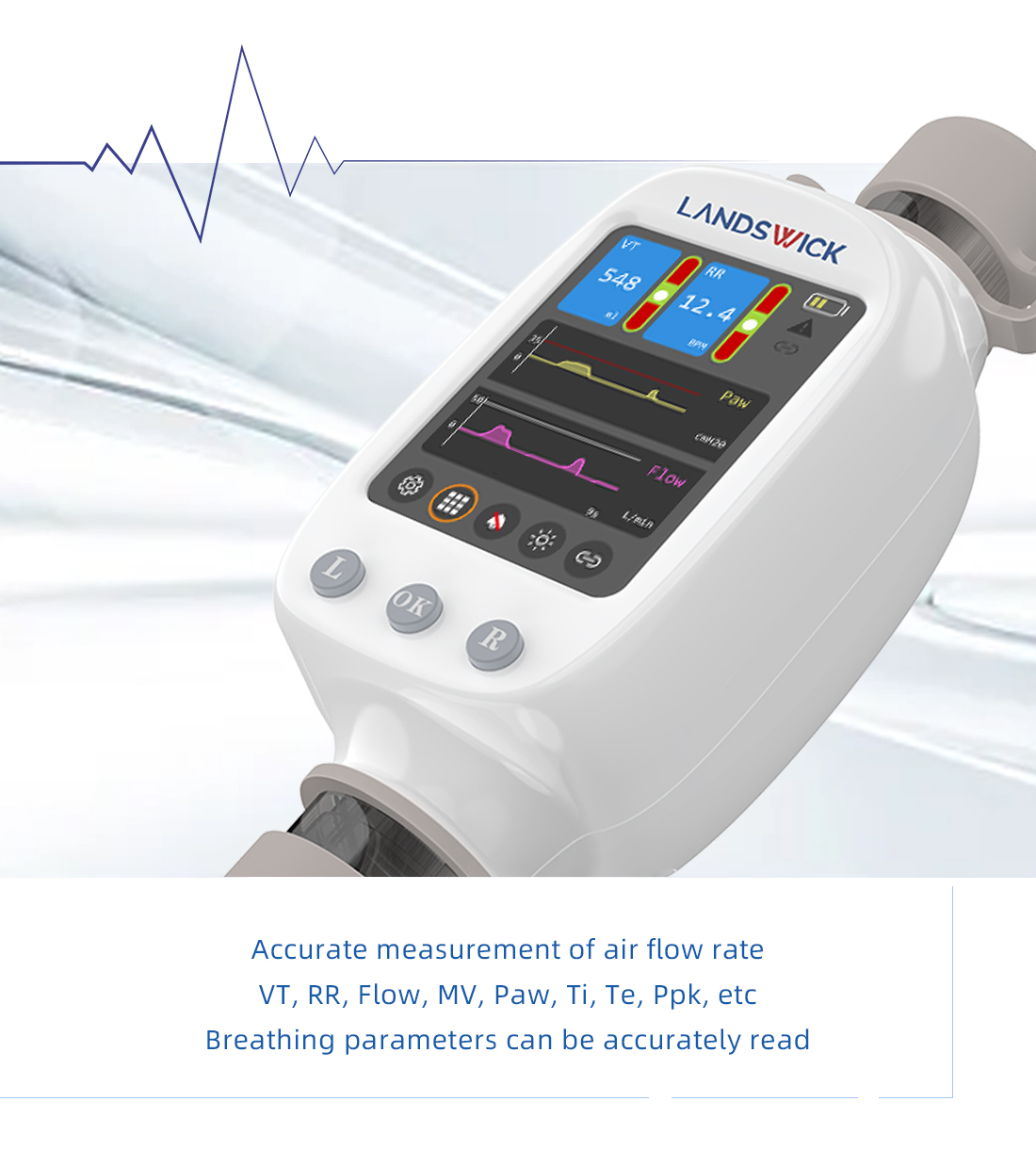

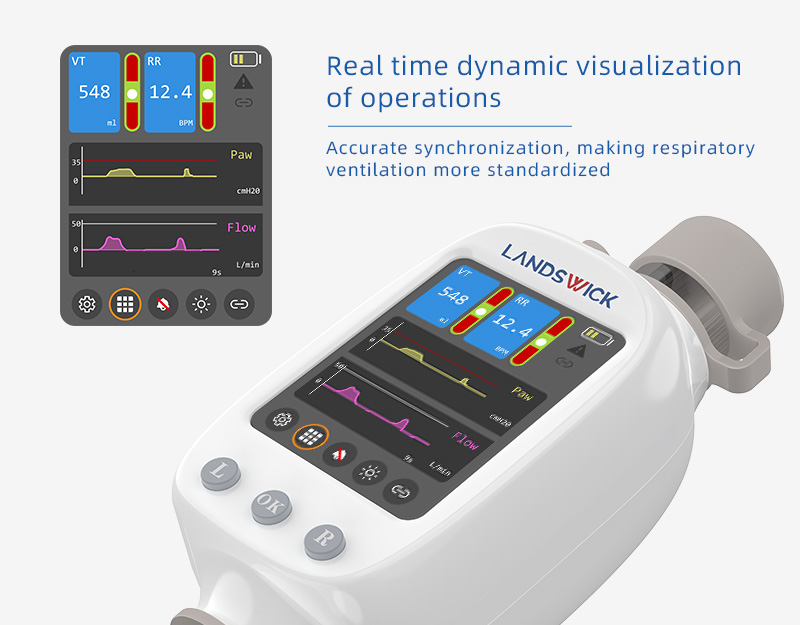

· Monitor breathing parameters: guide medical staff to accurately press the simple respirator.

· Standard interface: universal airway access for most simple respirators.

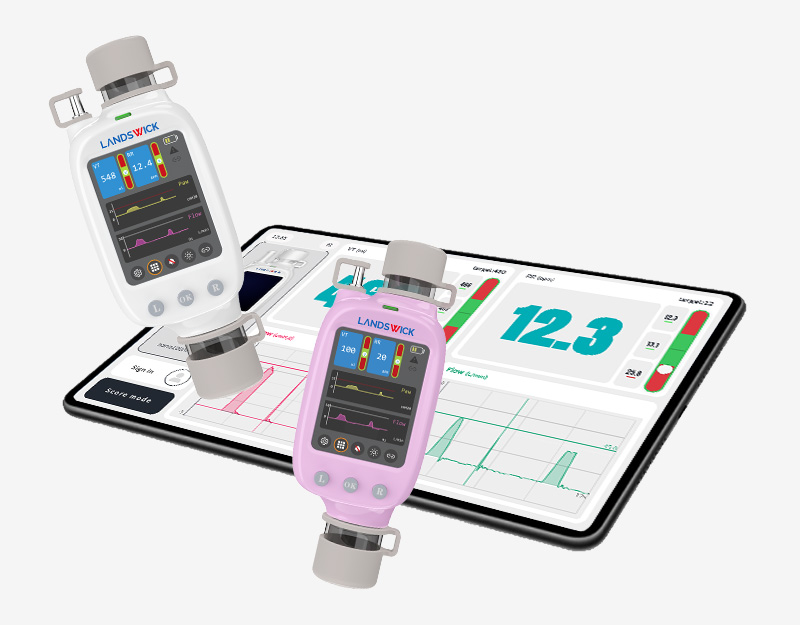

· Bluetooth information transmission, data storage and real-time monitoring APP

· Emergency treatment in specialized medical institutions such as hospitals, emergency rooms, and rescue rooms.

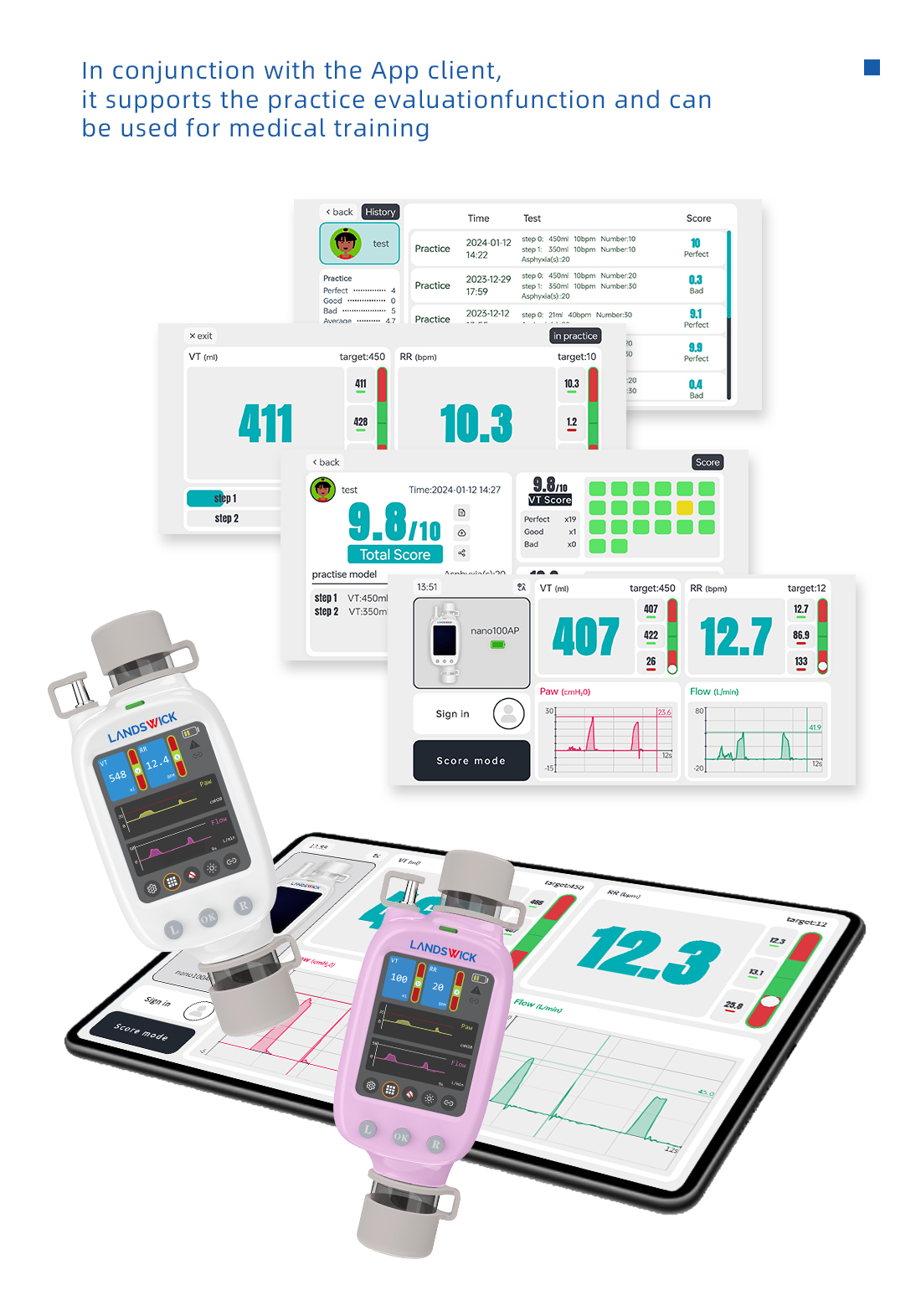

· Training function: practical operation, test record and evaluation function APP.


Main technical parameters

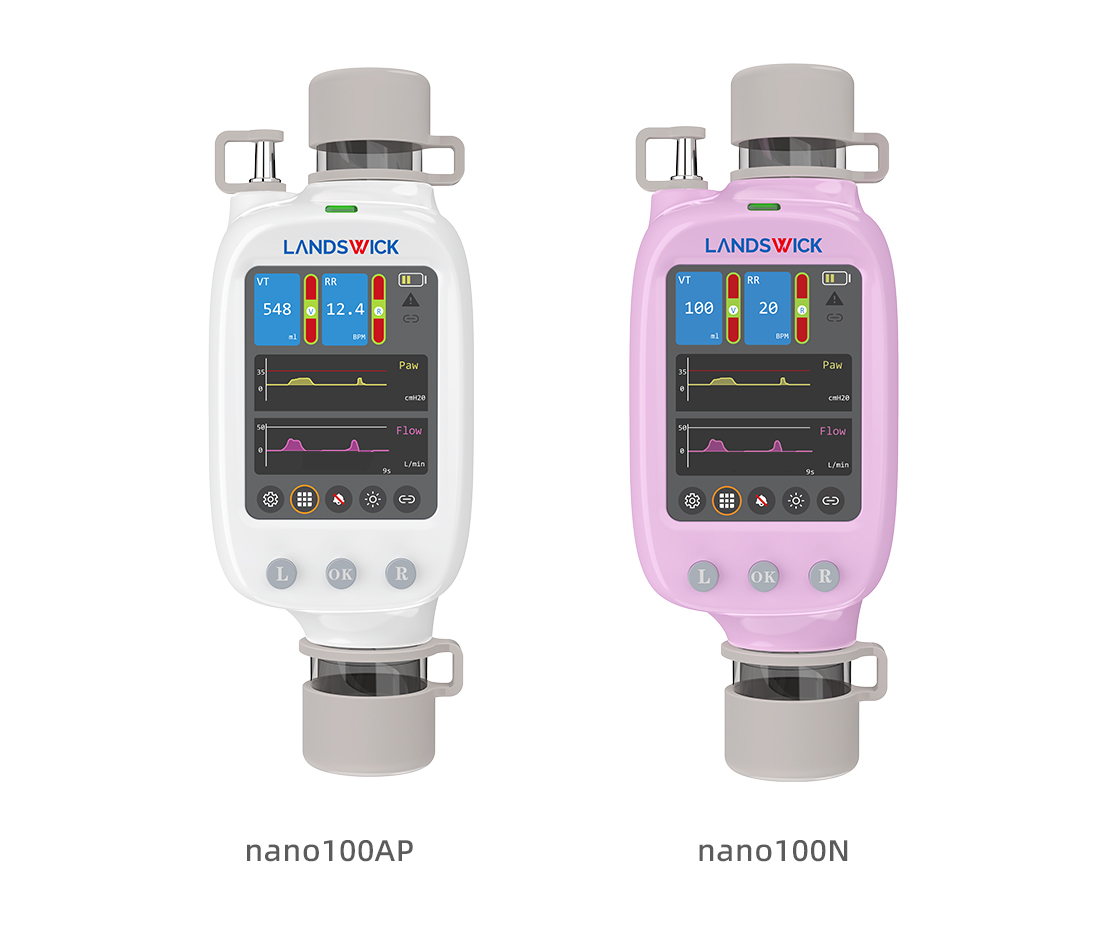

Model

Nano100AP

Nano100N

Applicable user

Adult>33kg   10kg<Child33kg

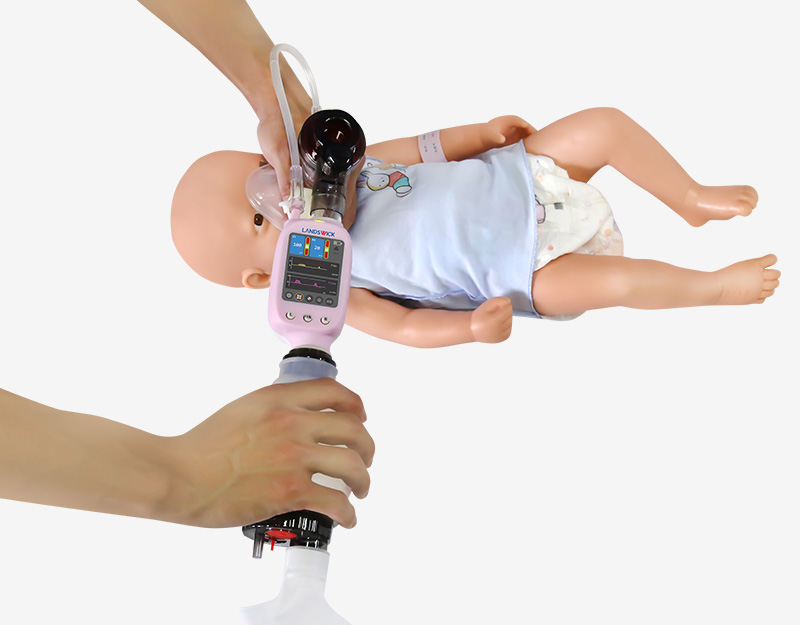

Newborn10kg

Dimension L×W×H

145mmx56mmx53mm

Flow Flow rate

0-120L/min

0-12L/min

Vt Tidal volume

0-1500mL

0-100mL

RR Respiratory rate

0~99Times per Minutebpm

MV Minute ventilation

0-30L/min

0-4L/min

Paw Airway pressure

0-100cmH2O

Ppk Peak airway pressure

Reminder: Please refer to the latest filing information.
